Southwire Tools & Equipment Southwire XT Cable Stripper Combo Kit XTC100

Southwire

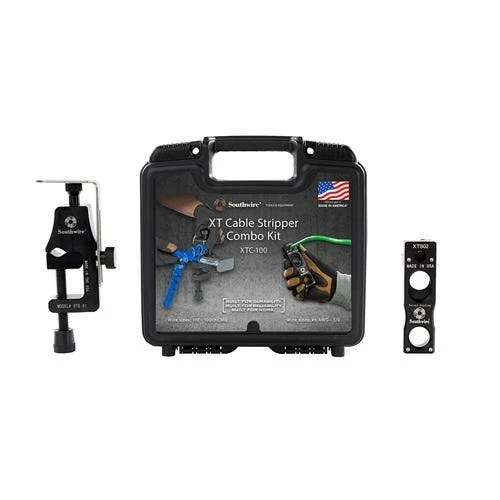

XT Cable Stripper Combo Kit XTC100

FEATURES:

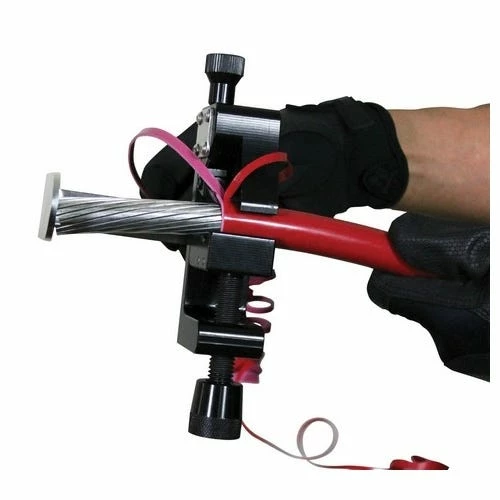

• XTS 01
• For End and Mid-Span Terminations on most 600V insulation types.
• Cutting depth is adjustable to precisely match insulation thickness for fast stripping while eliminating cable scoring.
• Adjustable 4 depth gauge provides consistent repeatable cuts.
• Replaceable; precision razor sharp blade that is safely enclosed within the tool; eliminates stripping cables with a knife.
• Capacity : wire 1/0 (.33 in diameter) in size to 1000kcMill (approx. 1.284″ diameter).
• XTS 02
• Spring loaded clamp- for securing cable while stripping.
• For End termination of THHN; XHHW 600V insulation types.
• Replaceable blade that is safely enclosed within the housing.
• Capacity: Wire sizes #6 AWG through 1/0.
• No adjustments to the blade are required.
• Compact Aluminum Body- easily fits in the tool bag or pouch.
• Long life precision razor curved blade design- for faster cuts.

Specifications

Model Number	XTC01
Stock Number	59-89-45-01
UPC Number	0-32886-96150-2
Height	3″
Width	10″
Depth	10″
Weight	2.0 lbs.

“
