Festool

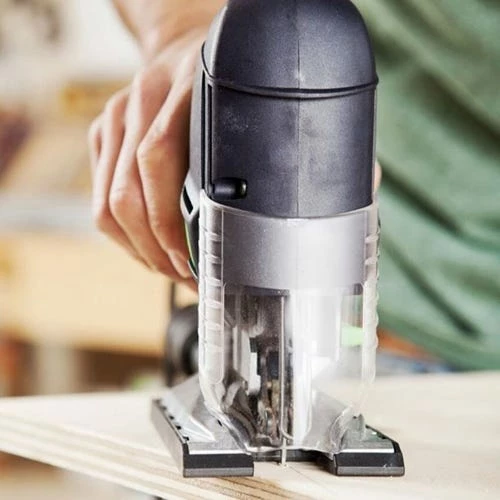

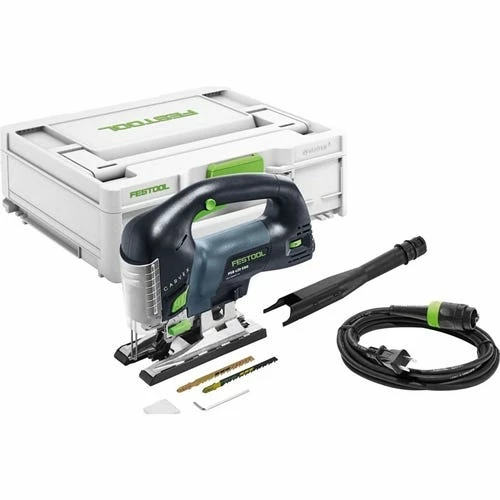

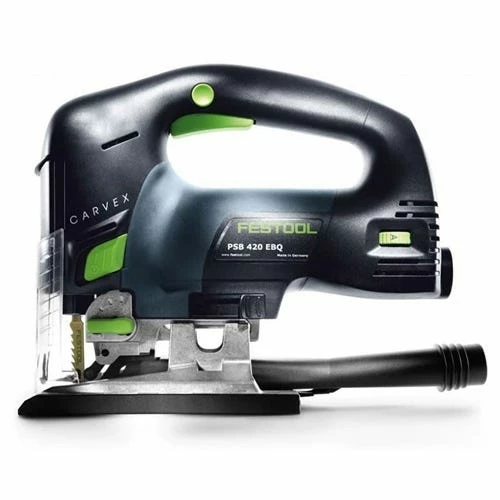

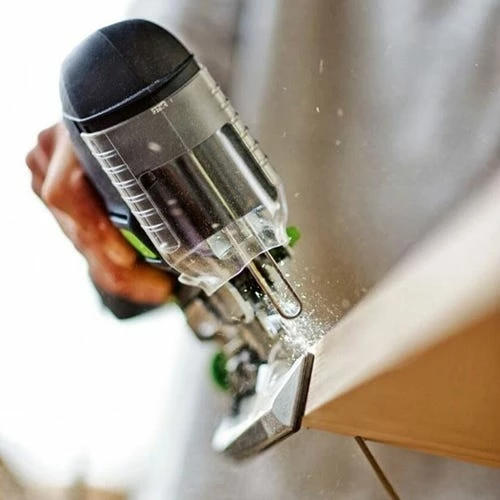

Pendulum Carvex Jigsaw PSB 420 EBQ-Plus US 576192

Conquer virtually any material and application thanks to the robust build and flexibilty of the Carvex design. With multiple baseplates for cutting wood; wood-like materials; plastics; and metals; the Carvex adapts to any application.

FEATURES:

4-LED Stroboscopic Light: Illuminate the cut line in-synch with the blade for effortless and improved visibility for precise cuts and less rework.
Ergonomics: An extremely comfortable design and low weight combined with dual-power switch position makes for easier; less fatiguing work in virtually every situation.
Carbide Guidance System: Triple blade reinforcement with rigid support rod and carbide jaws reduce blade wander and drift. This helps to eliminate cutting errors; spoiled workpieces; or need for rework.
FastFix Blade Change: Tool-free insertion that is as simple as turning a key in a lock. Features an equally speedy blade ejection system for faster blade changes.
MMC electronics: Increase cut performance with remarkable control featuring variable speed; constant speed under load; thermal and overload protection and a new automatic setting.
A tool-free base for every need: Get more out of your investment with a wide range of precision-enhancing based; including a circle-cutting base; a butterfly-style angle base; and even a base that protects delicate surfaces during cutting.
Brushless motor technology: EC-TEC motor with full electronic controls is long-lasting and energy efficient enabling extensive cutting with reduced effort and strain.
Dust extraction: Equipped with an anti-static removable dust port for a cleaner work area and less mess. Also equipped with a blower to keep a clear view of the cut line.
Adjustable Chip Catcher: The Chip Catcher of the Carvex can be adjusted up and down as needed for greater visibiilty or to aid in dust extraction. Can also be removed entirely.
13′ Plug-it Power Cord: Festool Plug-it system allows you to quickly switch between the jigsaw and just about any other tool; reducing downtime; and simplifying packaging.
Stroboscopic high-intensity LEDs for high blade visibility.

SPECIFICATIONS:

Motor Type	EC TEC Brushless Motor
Power Consumption	550 Watts /4.5 amp V AC
Stroke Rate 1 (26mm)	1;000 – 3;800 strokes per minute
Stroke Adjustment	Four Stage Stroke Adjustment
Bevel Adjustment	Fixed Base (optional angle base 496134 allows for bevels up to 45 deg left and right)
Cutting Depth (wood)	4-3/4″ (120mm)
Cutting Depth (non-ferrous metals)	3/4″ (20mm)
Cutting Depth (steel)	3/8″ (10mm)
Blade Type	Universal T-Shank
